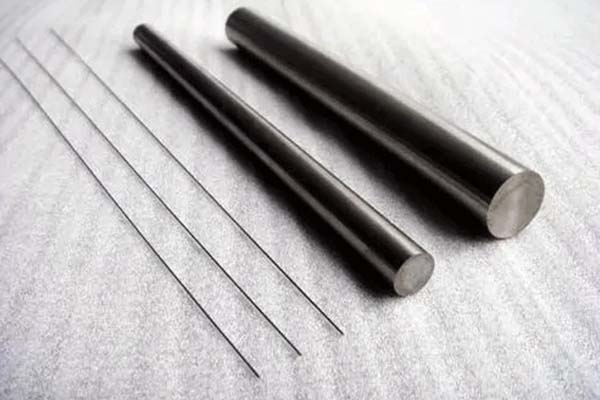

TA2/GR2 titanium rod

Request A Quote

Name	Titanium Bars/Rods
Standard	ASTMB348,ASTMF67,ATSTMF136,ISO5832-2,ISO5832-3
Material	Gr7
Available Materials	Gr1,Gr2.Gr3,Gr4,Gr5(Ti-6Al-4V),Gr5ELI,Ti-6AL7Nb(New Material)
Diameter	1mm~350mm
Certificates	ISO9001:2008,SGS
Shape	Round bar, Square /flat bar, Hexagonal bar, Rectangle bar
Techniques	Hot or cold rolling forging or annealed
Delivery time	2 weeks
Application	Industrial, Medical, Salt-making,Petrochemical, Metallurgy, Electronics , Chemical

Alloy	Tensile Strength (min)		0.2 % Yield Strenght (min)		Impurity Limits (wt %)
Alloy	C	Mn	S	Si	N (max)	C (max)	H (max)	Fe (max)	O (max)
ASTM Grade 1	240	35	170	25	0.03	0.1	0.015	0.2	0.18
ASTM Grade 2	340 50	280 40	0.03	0.1	0.015	0.3	0.25	–	–
ASTM Grade 3	450	65	380	55	0.06	0.1	0.015	0.3	0.35
ASTM Grade 4	550 80	480 70	0.06	0.1	0.015	0.5	0.4	–	–
ASTM Grade 7	340	50	280	40	0.03	0.1	0.015	0.3	0.25

Titanium rods and titanium alloy rods are new structural materials. Titanium has high melting point, low specific gravity, high specific strength, good toughness, fatigue resistance, acid and alkali corrosion resistance, low thermal conductivity, and good high and low temperature tolerance. It has the characteristics of small stress under rapid cooling and rapid heating conditions. It is used in high-tech fields such as aviation and aerospace, and is continuously promoted to industries such as chemical industry, petroleum, electric power, desalination, construction, and daily necessities.

Common grades of titanium rods

National standard brands: TA1, TA2, TA3, TA7, TA9, TA10, TA15, TA18, TC4, TC4ELI, TC6, TC9, TC10, TC11

American standard brands: GR1, GR2, GR3, GR5, GR7, GR12

Titanium rod production process:

Hot forging-hot rolling-annealing and straightening-turning (polishing)-polishing-flat head-inspection-packaging

Titanium rods comply with common standards:

National standards: GB/2965-2007, GB/T13810

American standards: ASTM B348, ASTM F136, ASTM F67, AMS4928

Titanium rod specifications: (diameter*length/mm): 6mm-250mm*L

Titanium rod supply status: hot processing status, annealing status

Reference Standard

1. GB 228 Metal Tensile Test Method

2. GB/T 3620.1 Titanium and titanium alloy grades and chemical compositions

3. GB/T3620.2 Chemical composition and composition tolerance of titanium and titanium alloy processed products

4. GB 4698 Titanium sponge, chemical analysis methods of titanium and titanium alloys

Titanium rod technical requirements

1. The chemical composition of titanium and titanium alloy rods should comply with the provisions of GB/T 3620.1. When repeated testing is required, the allowable deviation of the chemical composition should comply with the provisions of GB/T 3620.2.

2. The diameter or side length of hot-processed rods and their allowable deviations should comply with corresponding regulations.

3. After hot processing, the bar is turned (ground) and cold rolled. The allowable diameter deviation of the cold drawn bar should comply with industry regulations.

4. The out-of-roundness of the turned (ground) bar after thermal processing should not be greater than half of its dimensional tolerance.

use:

Aerospace, aviation, navigation, ships, seawater desalination, petroleum, chemical industry, mechanical equipment, nuclear power equipment, electric power equipment, automobile and motorcycle parts, sports and leisure, medical parts, steel and metallurgy, high-tech fields.
